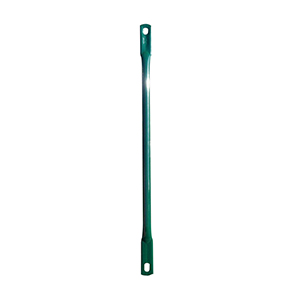

Diagonal Brace for Sidewalk Shed Bridge System

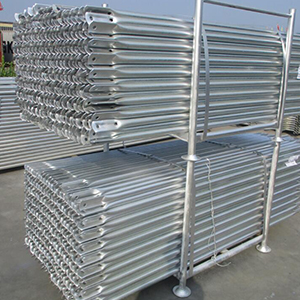

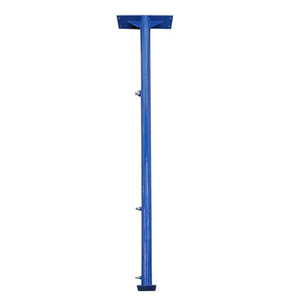

| Sidewalk Bridge Leg | |||
| Item No. | Size | Weight | Finish |
| SWB8 | 8' Bridge Legs | 65 lbs | HDG / Powder Coated |
| SWB10 | 10' Bridge Legs | 72 lbs | HDG / Powder Coated |
| SWB12 | 12' Bridge Legs | 84 lbs | HDG / Powder Coated |
| SWB14 | 14' Bridge Legs | 95 lbs | HDG / Powder Coated |
| SWB16 | 16' Bridge Legs | 106 lbs | HDG / Powder Coated |
| SWB20 | 20' Bridge Legs | 128 lbs | HDG / Powder Coated |
| Horizontal girth & brace | |||
| Item No. | Specification | Weight | Finish |
| SWG1 | 1' Gurtz | 1.7 lbs | HDG / Powder Coated |
| SWG3 | 3' Gurtz | 4.4 lbs | HDG / Powder Coated |
| SWG8 | 8' Gurtz | 12 lbs | HDG / Powder Coated |
| SWDB104 | 10'4'' Brace | 10 lbs | HDG / Powder Coated |
| Corrugated Sheet | |||
| Item No. | Size | Weight | Finish |
| AD-CS8 | 8'x33'' | 21.1 lbs | Galvanized |
| AD-CS10 | 10'x33'' | 26.3 lbs | Galvanized |
| AD-CS12 | 12'x33'' | 31.7 lbs | Galvanized |
| JUNIOE BEAMS & HEADER BEAMS | |||
| Item No. | Size | Weight | Finish |
| AD-JB10 | 10' Junior beam | 73 lbs | self-color |
| AD-JB13 | 13' Junior beam | 97 lbs | self-color |
| AD-JB15 | 15' Junior beam | 108 lbs | self-color |
| AD-HB10 | 10' Header beam W8X10 | 100.00 | self-color |
| AD-HB10A | 10' Header beam W10X13 | 130.00 | self-color |
