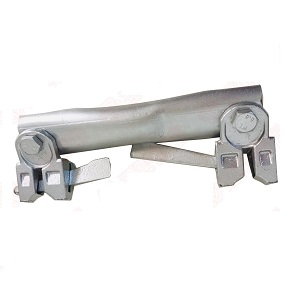

Diagonal Braces connect to the rosette using a swiveling cast end and wedge, and provide rigidity to the scaffold. Available in every Ledger length and lift height from 1.0 m - 2.0 m.
* Diagonal Scaffolding Brace Ø48.3X2.5mm
* Surface finish: hot dipped galvanised
* Crimped swivel ends
* Comes in a range of lengths from 0.73m – 3.07m (Lengths refers to length of bay for intended use, actual lengths of items will be slightly longer and will vary)
| ITEM CODE | LXH(M) | ITEM CODE | LXH(M) | ITEM CODE | LXH(M) | ITEM CODE | LXH(M) |
| YPDB07320 | 0.73X2.0 | YPDB07315 | 0.73X1.5 | YPDB03020 | 0.3X2.0 | YPDB03015 | 0.3X1.5 |
| YPDB10920 | 1.09X2.0 | YPDB10915 | 1.09X1.5 | YPDB06020 | 0.6X2.0 | YPDB06015 | 0.6X1.5 |
| YPDB14020 | 1.40X2.0 | YPDB14015 | 1.40X1.5 | YPDB09020 | 0.9X2.0 | YPDB09015 | 0.9X1.5 |
| YPDB15720 | 1.57X2.0 | YPDB15715 | 1.57X1.5 | YPDB12020 | 1.2X2.0 | YPDB11515 | 1.2X1.5 |
| YPDB20720 | 2.07X2.0 | YPDB20715 | 2.07X1.5 | YPDB15020 | 1.5X2.0 | YPDB15015 | 1.5X1.5 |
| YPDB25720 | 2.57X2.0 | YPDB25715 | 2.57X1.5 | YPDB18020 | 1.8X2.0 | YPDB18015 | 1.8X1.5 |
| YPDB30720 | 3.07X2.0 | YPDB30715 | 3.07X1.5 | YPDB20020 | 2.0X2.0 | YPDB15015 | 2.0X1.5 |
| Other size is available | |||||||
COMPANY PROFILE
ADTO GROUP have more than 20 years experience and a long tradition in the engineering and production of scaffolding solutions, We understanding how the needs of our customers have been evolving over the years and being a reliable partner for scaffolders, the industry, and in infrastructure projects, ADTO has been an integral part of the scaffolding world from the very beginning. The ADTO Ringlock system conforms to Australian standards AS/NZS 1576 and other international standards such as EN12810 etc.
RINGLOCK SCAFFOLDING APPLICATION
With its flexible modular units and unlimited angular capabilities, the Ring Lock scaffold system makes it easy to scaffold a variety of complex building plans and elevations. In other words, it’s the go-to scaffold system for all applications in any type of industry.
● Construction
● Maintenance
● Energy production
● Overhead cabling
● Chemical plants
● Refineries
● Shipyards
● Most building trades
RINGLOCK SCAFFOLDING FEATURES
● Rosette modular scaffolding with smart assembly technique
● Few loose scaffolding parts with unique shape
● Fast scaffold assembly and dismantling
● Optimum use of storage and transport capacity
● High structural stability ; High safety standards
● Indestructible components
● Stable in value
● Full traceability
WHY CHOOSE RINGLOCK SCAFFOLDING?
● The ringlock scaffold offers you a high degree of flexibility and versatility.
● Reduced working time and errors during assembly
● You can not only assemble and dismantle a ringlock scaffold quickly, but also store it in a space-saving way
● Ringlock scaffold is designed to bear high loads
● Mixing approvals for even more flexibility

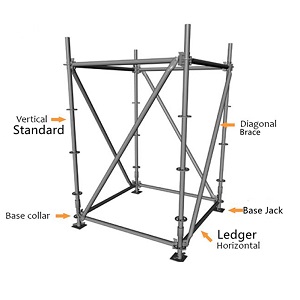

RINGLOCK SYSTEMS MAIN COMPONENTS

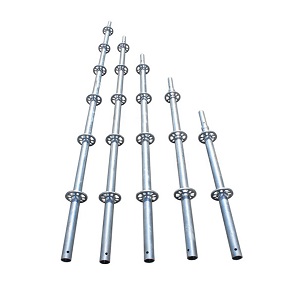

Standards are the vertical members of Ringlock scaffolding. The standard provides the vertical support for scaffolding. The spigot is permanently fixed in place.
| Ringlock Standard | |||||||
| ITEM | ITEM CODE | LENGTH(M) | |||||
| 1 STAR STANDARD | YPSD050 | 0.5 | |||||
| 2 STAR STANDARD | YPSD100 | 1.0 | |||||
| 3 STAR STANDARD | YPSD150 | 1.5 | |||||
| 4 STAR STANDARD | YPSD200 | 2.0 | |||||
| 5 STAR STANDARD | YPSD250 | 2.5 | |||||
| 6 STAR STANDARD | YPSD300 | 3.0 | |||||
| 8 STAR STANDARD | YPSD400 | 4.0 | |||||

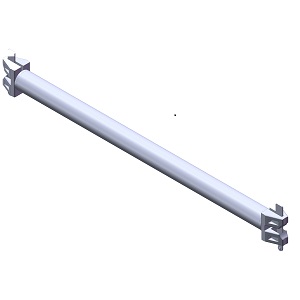

Ledgers & U transoms are the horizontal members of Ringlock scaffolding. They provide horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guardrails.
| O Ledger | |||||||
| ITEM CODE | LENGTH(M) | ITEM CODE | LENGTH(M) | ||||
| YPLO073 | 0.73 | YPLO030 | 0.6 | ||||
| YPLO109 | 1.09 | YPLO060 | 0.6 | ||||
| YPLO140 | 1.4 | YPLO090 | 0.9 | ||||
| YPLO157 | 1.57 | YPLO120 | 1.2 | ||||
| YPLO207 | 2.07 | YPLO150 | 1.5 | ||||
| YPLO257 | 2.57 | YPLO180 | 1.8 | ||||
| YPLO307 | 3.07 | YPLO200 | 2.0 | ||||
| Other size is available | |||||||
| U TRANSOM | |||||||
| ITEM | ITEM CODE | LENGTH(M) | |||||
| 2 PLANKS U TRANSOM | YPLU073 | 0.73 | |||||
| 3 PLANKS U TRANSOM | YPLU109 | 1.09 | |||||
| REINFORCED TRANSOM | YPLU140 | 1.4 | |||||
| REINFORCED TRANSOM | YPLU157 | 1.57 | |||||
| REINFORCED TRANSOM | YPLU207 | 2.07 | |||||
| REINFORCED TRANSOM | YPLU257 | 2.57 | |||||
| REINFORCED TRANSOM | YPLU307 | 3.07 | |||||
| Other size is available | |||||||

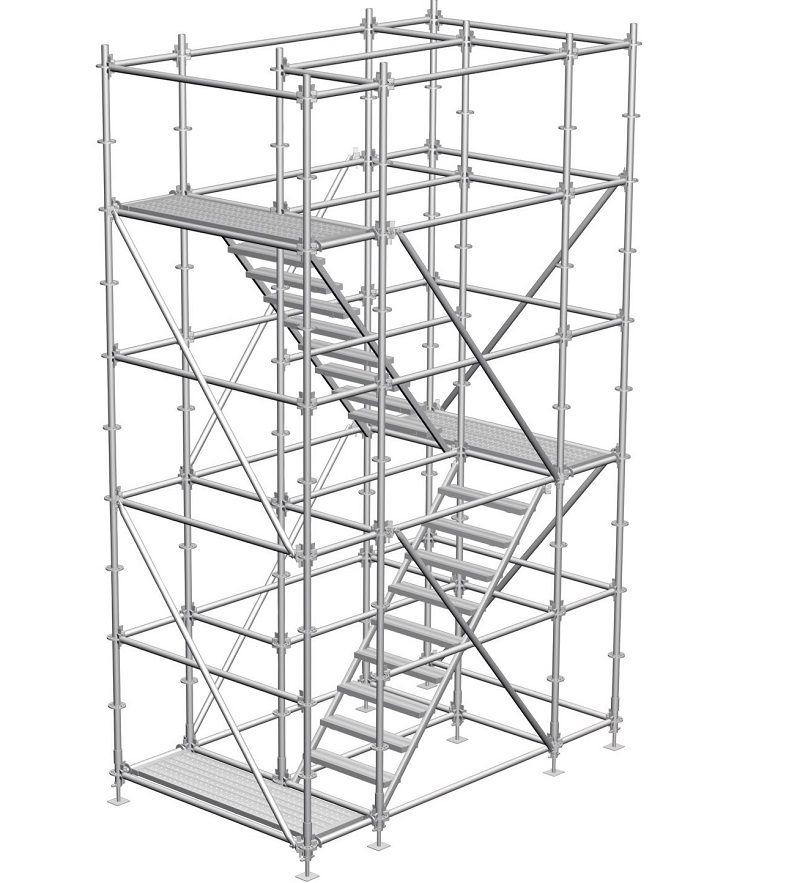

Diagonal Braces are used for the lateral bracing of Ringlock scaffolds. They can also be used as compression and tension members for cantilevers/spurs where they transmit loads back into the main scaffold structure. Diagonal/ Bay Braces are also used for handrails in the Ringlock Steel Stair System.
| ITEM CODE | LXH(M) | ITEM CODE | LXH(M) | ITEM CODE | LXH(M) | ITEM CODE | LXH(M) |
| YPDB07320 | 0.73X2.0 | YPDB07315 | 0.73X1.5 | YPDB03020 | 0.3X2.0 | YPDB03015 | 0.3X1.5 |
| YPDB10920 | 1.09X2.0 | YPDB10915 | 1.09X1.5 | YPDB06020 | 0.6X2.0 | YPDB06015 | 0.6X1.5 |
| YPDB14020 | 1.40X2.0 | YPDB14015 | 1.40X1.5 | YPDB09020 | 0.9X2.0 | YPDB09015 | 0.9X1.5 |
| YPDB15720 | 1.57X2.0 | YPDB15715 | 1.57X1.5 | YPDB12020 | 1.2X2.0 | YPDB11515 | 1.2X1.5 |
| YPDB20720 | 2.07X2.0 | YPDB20715 | 2.07X1.5 | YPDB15020 | 1.5X2.0 | YPDB15015 | 1.5X1.5 |
| YPDB25720 | 2.57X2.0 | YPDB25715 | 2.57X1.5 | YPDB18020 | 1.8X2.0 | YPDB18015 | 1.8X1.5 |
| YPDB30720 | 3.07X2.0 | YPDB30715 | 3.07X1.5 | YPDB20020 | 2.0X2.0 | YPDB15015 | 2.0X1.5 |
| Other size is available | |||||||
Steel Deck are laid side by side to form the working platform. They span the length of the bay and hook onto the suppor ting Ledger/Transom. There is an antilock system to prevent uplift in adverse conditions.
| Option A-Heavy Duty Plank | Option B-Light & Medium Duty Plank | ||||||
| WXL(M) | WXL(M) | Width(MM) | Length (MM) | ||||
| "O" hook | "U" hook | 230 | 600 | ||||
| 0.32X0.73 | 0.32X0.73 | 240 | 900 | ||||
| 0.32X1.09 | 0.32X1.09 | 250 | 914 | ||||
| 0.32X1.40 | 0.32X1.40 | 300 | 1200 | ||||
| 0.32X1.57 | 0.32X1.57 | 320 | 1219 | ||||
| 0.32X2.07 | 0.32X2.07 | 420 | 1500 | ||||
| 0.32X2.57 | 0.32X2.57 | 450 | 1800 | ||||
| 0.32X3.07 | 0.32X3.07 | 480 | 1829 | ||||
| 500 | 2000 | ||||||
| Other Size is Available | |||||||

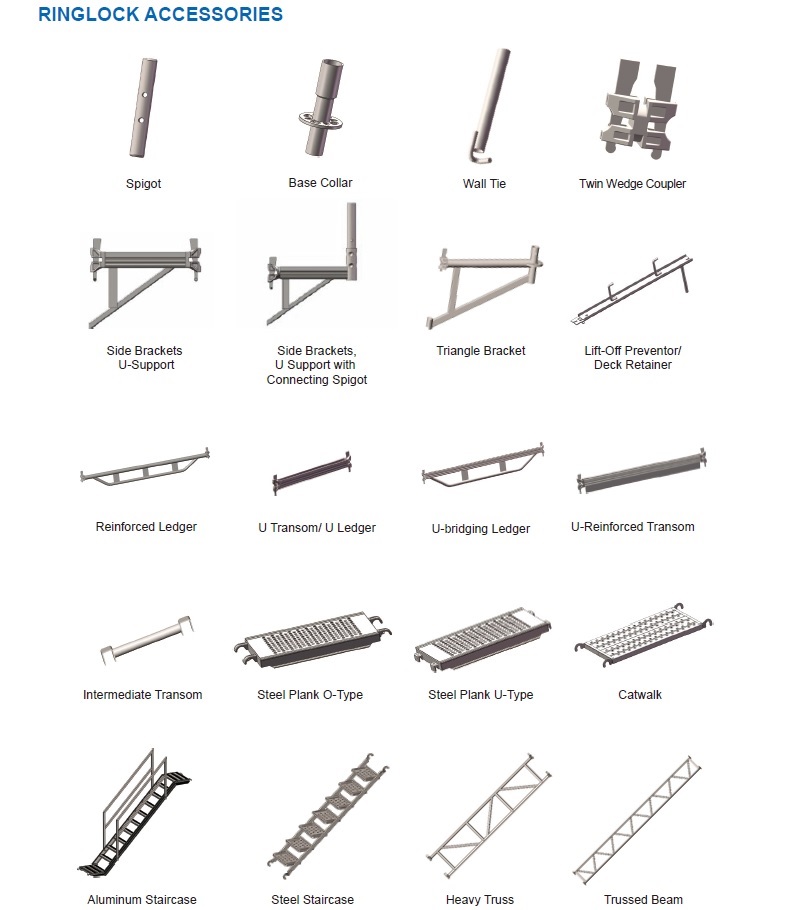

OTHER COMPONENTS AND ACCESSORIES
CERTIFICATES
ADTO Ringlock system tested by authority lad and conforms to Australian standards AS/NZS 1576 and other international standards such as EN12810 etc.

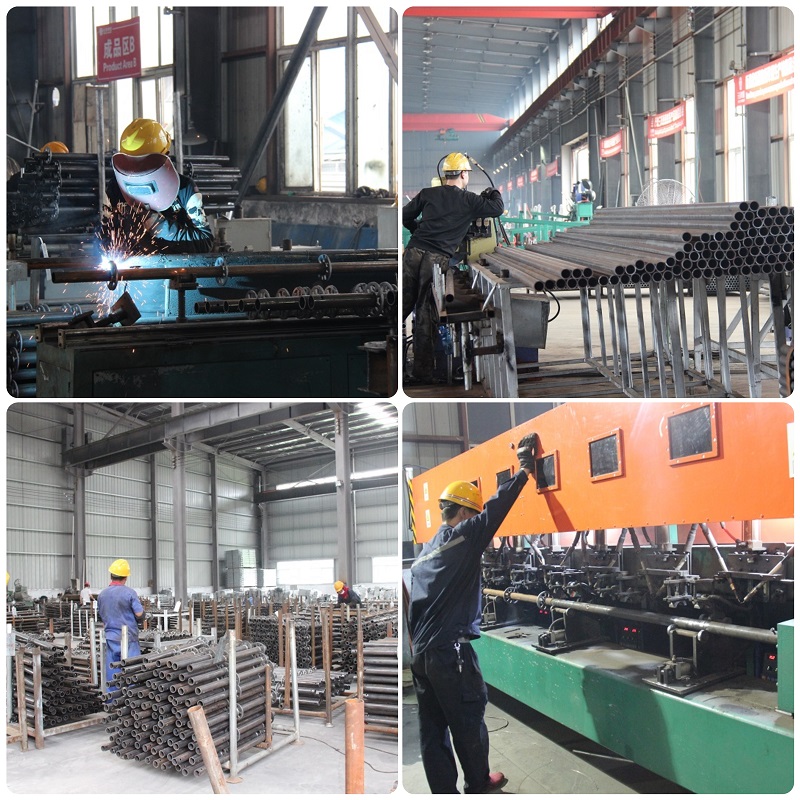

PRODUCTION
ADTO ringlock scaffoldings created by highly automated production. We can adapt production to suit our customers’ requirements, flexibly and at any time.

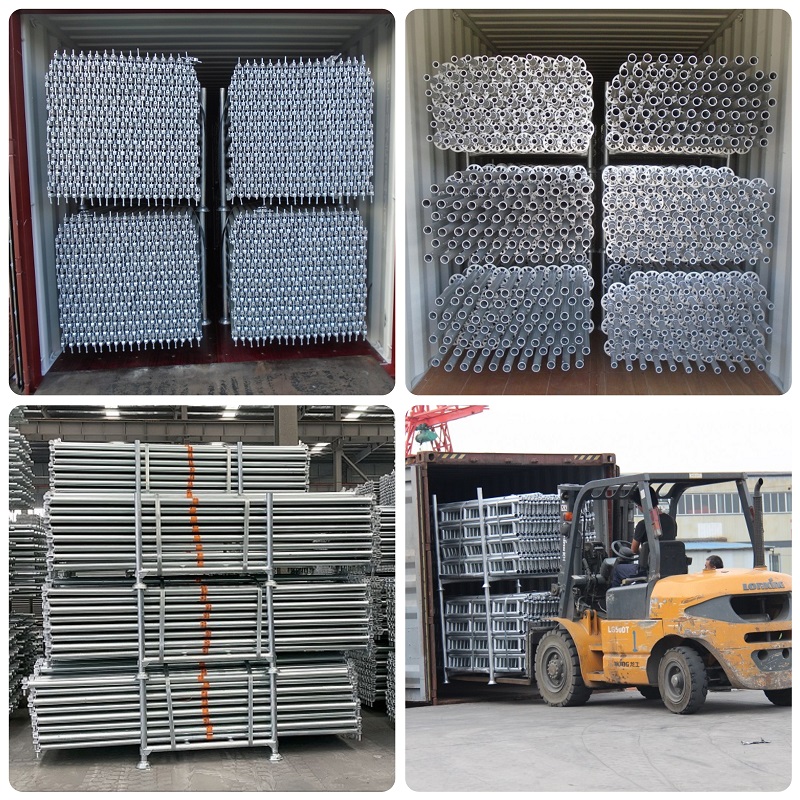

PACKING & LOADING
All scaffolding are packed in pallets for easy storage in warehouses, easy for loading and unloading.

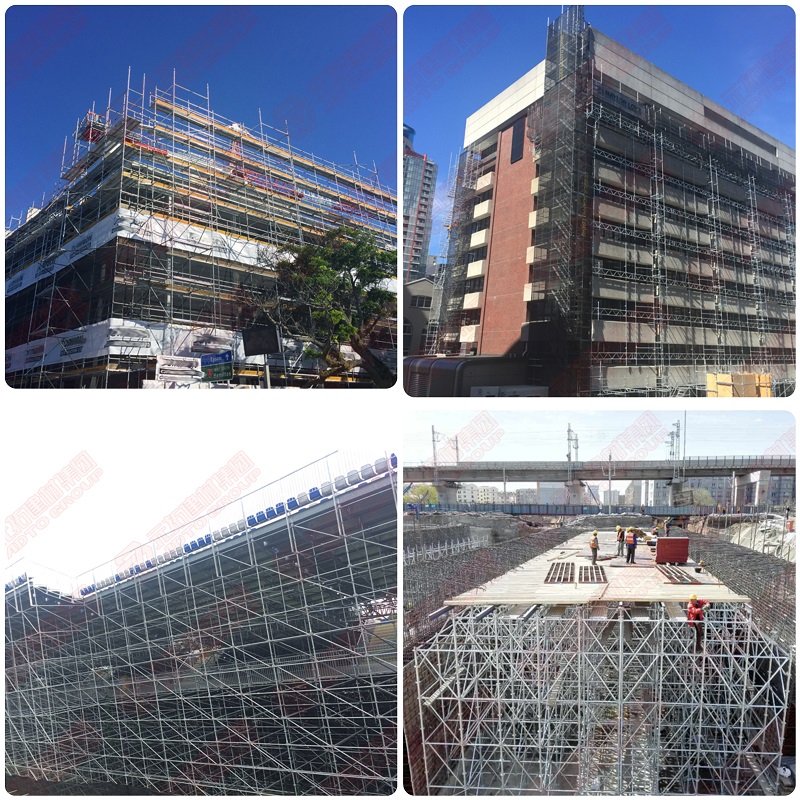

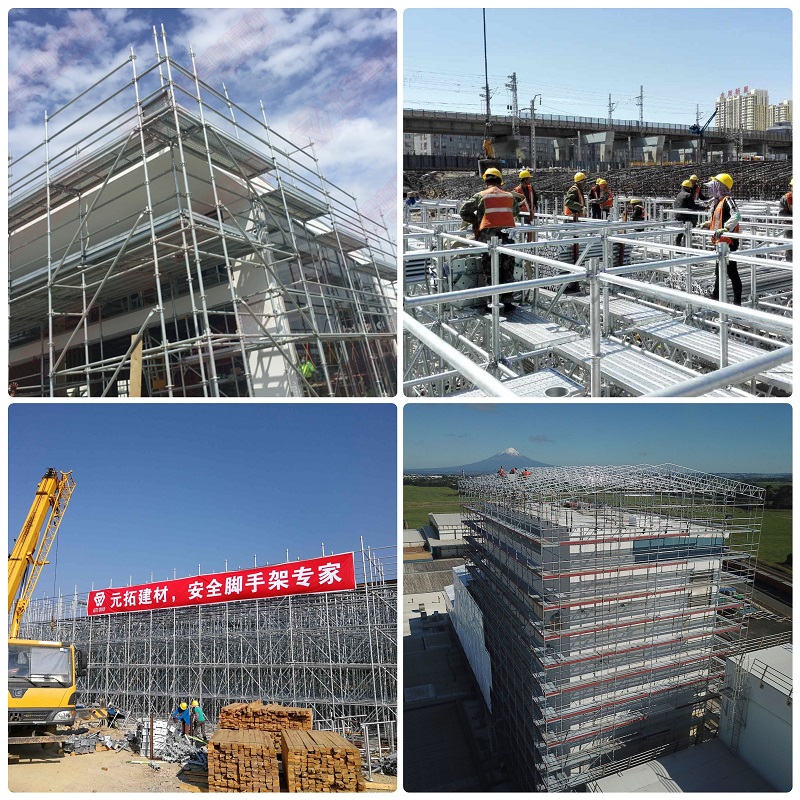

ON SITE PROJECTS
ADTO scaffolding was widely used on local and oversea market.
