Hot Dipped Galvanized Ladder Beam

  • FOB Price :
  • Min.Order Quantity : 25 Ton/Tons
  • Supply Ability : 1000 Piece/Per Week
  • Loading Port : Tianjin
  • Payment Terms : L/C,T/T
Product quality protection
On-time shipment protection

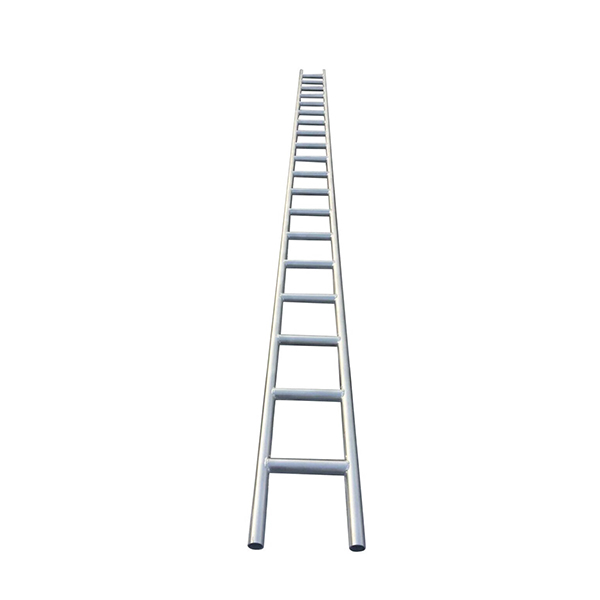

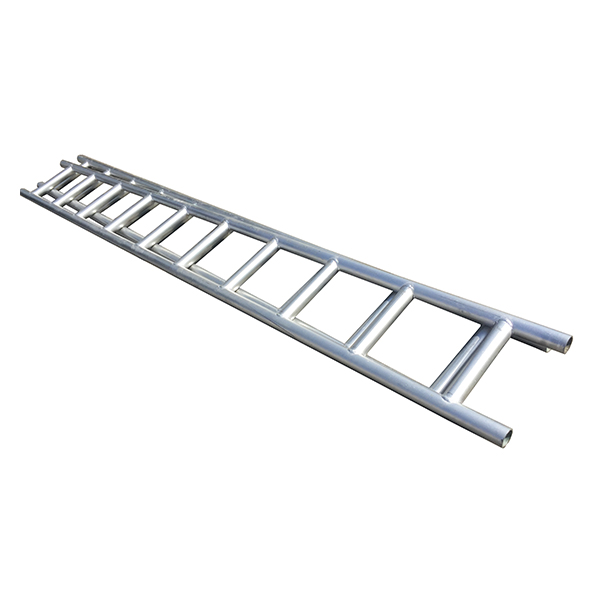

Ladder Beam

Ladder beam is a beam that resembles a ladder with two tubular members made from standard scaffold tube. Ladder beams have a wide range of uses and can also be used to form part of a more complex structure.

Ladder Beams provide an access opening within scaffolding set ups to allow for material handling on site. Having the beam raised and spanning from one scaffolding bay to the other achieves this as you can then have the bays above supported by the beam, giving the access point for various reasons, e.g. forklifts and trucks.

ADTO Scaffolding ladder Beam available from 1mtr-6mtr, length can be customized.

Product NameMaterialWidthLength
Ladder BeamQ235/Q355300mm2m/3m/4m/5m/6m/8m
Ladder BeamQ235/Q355305mm2m/3m/4m/5m/6m/8m
Ladder BeamQ235/Q355400mm2m/3m/4m/5m/6m/8m
Unit BeamQ235/Q355610mm0.9m - 6m
Unit BeamQ235/Q355750mm0.9m - 6m

Features:

1. Surface treatment: Hot Dipped Galvanized / Powder Coated

2. Standard: EN12811/EN10219/EN39/BS1139

3. Material: Q355 & Q235

4. Tube Diameter: 48.3mm

5. Tube Thickness: 3.0mm- 4.0mm.

6. Port of loading: Tianjin

7. Samples are available

8. Factory is ISO 9001-2000 approved.

9. Performance: good bearing capacity, durable & stable

10. Test: SGS, BV or as per your request

11. OEM service is available.

ADTO steel ladder beam can be used to a range of scaffolding systems, here is some applications in construction projects.
