Ringlock scaffolding bracket

  • FOB Price : $750-900/ton
  • Min.Order Quantity : 5tons
  • Supply Ability : 8000tons/month
  • Loading Port : Tianjin
  • Payment Terms : TT or LC
Product quality protection
On-time shipment protection

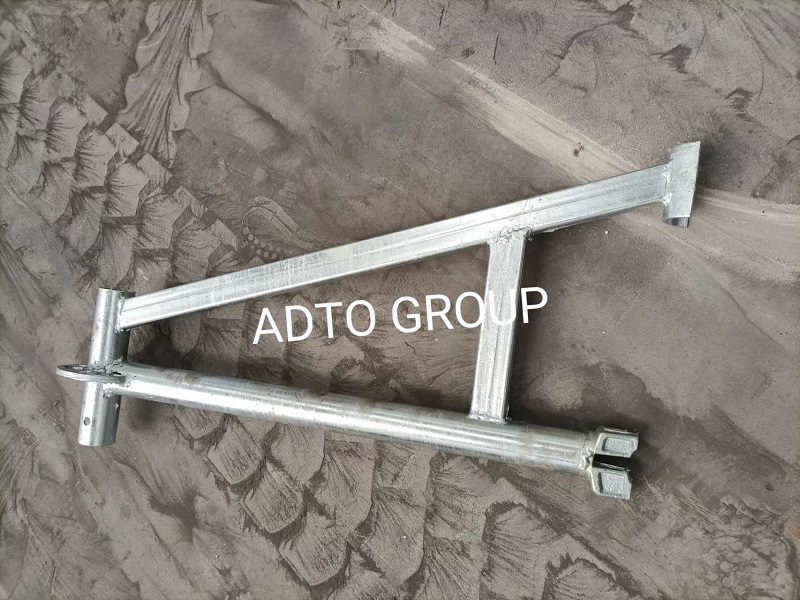

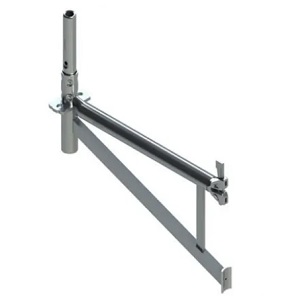

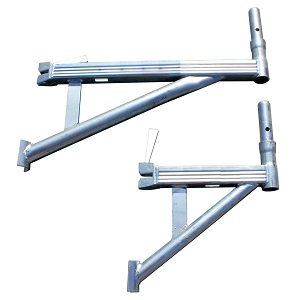

Ringlock Bracket (Hop up)


Surface: Hot dip galvanized

Size: for 1 planks 2 planks, 3 planks

Design: In different design per clients' request


ADTO RINGLOCK BRACKET HOP UP.jpg


COMPANY PROFILE



ADTO GROUP have more than 20 years experience and a long tradition in the engineering and production of scaffolding solutions, We understanding how the needs of our customers have been evolving over the years and being a reliable partner for scaffolders, the industry, and in infrastructure projects, ADTO has been an integral part of the scaffolding world from the very beginning. The ADTO Ringlock system conforms to Australian standards AS/NZS 1576 and other international standards such as EN12810 etc.

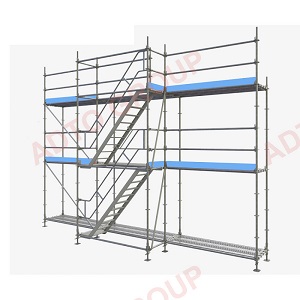

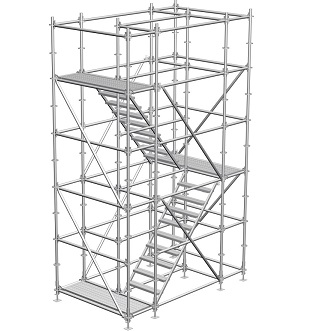

RINGLOCK SCAFFOLDING APPLICATION

With its flexible modular units and unlimited angular capabilities, the Ring Lock scaffold system makes it easy to scaffold a variety of complex building plans and elevations. In other words, it’s the go-to scaffold system for all applications in any type of industry.

● Construction

● Maintenance

● Energy production

● Overhead cabling

● Chemical plants

● Refineries

● Shipyards

● Most building trades



RINGLOCK SCAFFOLDING FEATURES

● Rosette modular scaffolding with smart assembly technique

● Few loose scaffolding parts with unique shape

● Fast scaffold assembly and dismantling

● Optimum use of storage and transport capacity

● High structural stability ; High safety standards

● Indestructible components

● Stable in value

● Full traceability



WHY CHOOSE RINGLOCK SCAFFOLDING?

● The ringlock scaffold offers you a high degree of flexibility and versatility.

● Reduced working time and errors during assembly

● You can not only assemble and dismantle a ringlock scaffold quickly, but also store it in a space-saving way

●  Ringlock scaffold is designed to bear high loads

●  Mixing approvals for even more flexibility

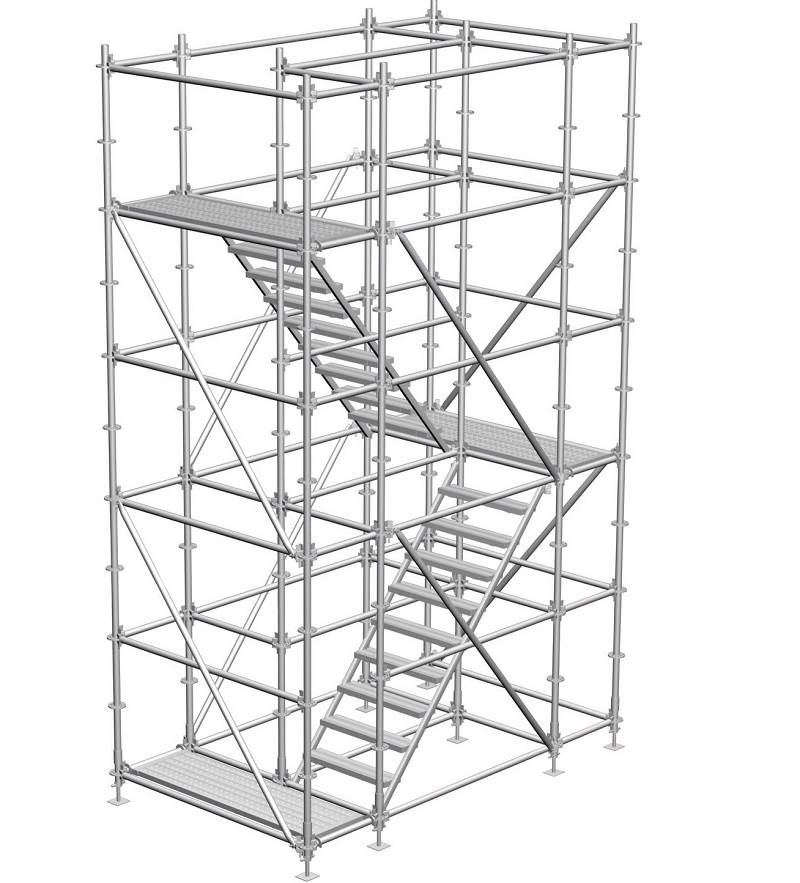

RINGLOCK SYSTEMS MAIN COMPONENTS



ADTO RINGLOCK SCAFFOLDING (2).jpg

Standards are the vertical members of Ringlock scaffolding. The standard provides the vertical support for scaffolding. The spigot is permanently fixed in place.



ITEMITEM CODELENGTH(M)
1 STAR STANDARDYPSD0500.5
2 STAR STANDARDYPSD1001.0
3 STAR STANDARDYPSD1501.5
4 STAR STANDARDYPSD2002.0
5 STAR STANDARDYPSD2502.5
6 STAR STANDARDYPSD3003.0
8 STAR STANDARDYPSD4004.0





Ledgers & U transoms are the horizontal members of Ringlock scaffolding. They provide horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guardrails.



O Ledger
ITEM CODELENGTH(M)ITEM   CODELENGTH(M)
YPLO0730.73YPLO0300.6
YPLO1091.09YPLO0600.6
YPLO1401.4YPLO0900.9
YPLO1571.57YPLO1201.2
YPLO2072.07YPLO1501.5
YPLO2572.57YPLO1801.8
YPLO3073.07YPLO2002
Other size is available


U TRANSOM
ITEMITEM   CODELENGTH(M)
2 PLANKS U TRANSOMYPLU0730.73
3 PLANKS U TRANSOMYPLU1091.09
REINFORCED TRANSOMYPLU1401.4
REINFORCED TRANSOMYPLU1571.57
REINFORCED TRANSOMYPLU2072.07
REINFORCED TRANSOMYPLU2572.57
REINFORCED TRANSOMYPLU3073.07
Other size is available



Diagonal Braces are used for the lateral bracing of Ringlock scaffolds. They can also be used as compression and tension members for cantilevers/spurs where they transmit loads back into the main scaffold structure. Diagonal/ Bay Braces are also used for handrails in the Ringlock Steel Stair System.



ITEM CODELXH(M)ITEM CODELXH(M)ITEM CODELXH(M)ITEM CODELXH(M)
YPDB073200.73X2.0YPDB073150.73X1.5YPDB030200.3X2.0YPDB030150.3X1.5
YPDB109201.09X2.0YPDB109151.09X1.5YPDB060200.6X2.0YPDB060150.6X1.5
YPDB140201.40X2.0YPDB140151.40X1.5YPDB090200.9X2.0YPDB090150.9X1.5
YPDB157201.57X2.0YPDB157151.57X1.5YPDB120201.2X2.0YPDB115151.2X1.5
YPDB207202.07X2.0YPDB207152.07X1.5YPDB150201.5X2.0YPDB150151.5X1.5
YPDB257202.57X2.0YPDB257152.57X1.5YPDB180201.8X2.0YPDB180151.8X1.5
YPDB307203.07X2.0YPDB307153.07X1.5YPDB200202.0X2.0YPDB150152.0X1.5
Other size is available





Steel Deck
 are laid side by side to form the working platform. They span the length of the bay and hook onto the suppor ting Ledger/Transom. There is an antilock system to prevent uplift in adverse conditions.



Option A-Heavy Duty PlankOption   B-Medium Duty Plank
WXL(M)WXL(M)Width(MM)Length   (MM)
"O"   hook"U" hook240/250/300/320/420/450/480/500600
900
0.32X0.730.32X0.73914
0.32X1.090.32X1.091200
0.32X1.400.32X1.401219
0.32X1.570.32X1.571500
0.32X2.070.32X2.071800
0.32X2.570.32X2.571829
0.32X3.070.32X3.072000
Other Size is Available

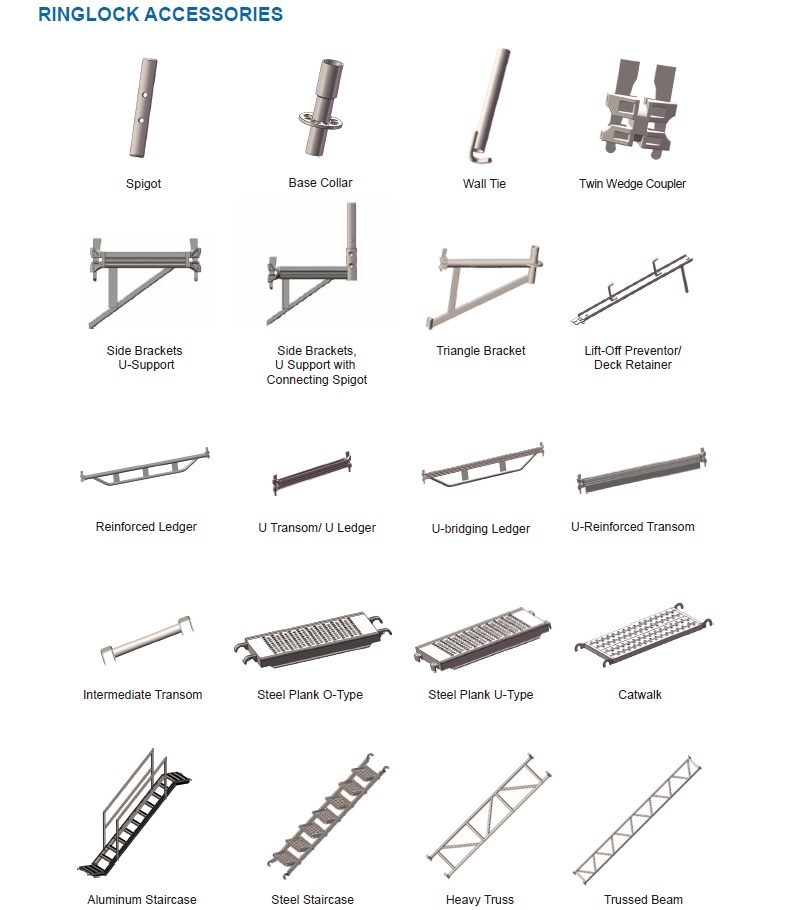

OTHER COMPONENTS AND ACCESSORIES



ADTO RINGLOCK SCAFFOLDING ACCESSORIES (2).jpg

 ADTO RINGLOCK SCAFFOLDING ACCESSORIES (1).jpg



CERTIFICATES

ADTO Ringlock system tested by authority lad and conforms to Australian standards AS/NZS 1576 and other international standards such as EN12810 etc.

  ADTO ringlock certificate.jpg

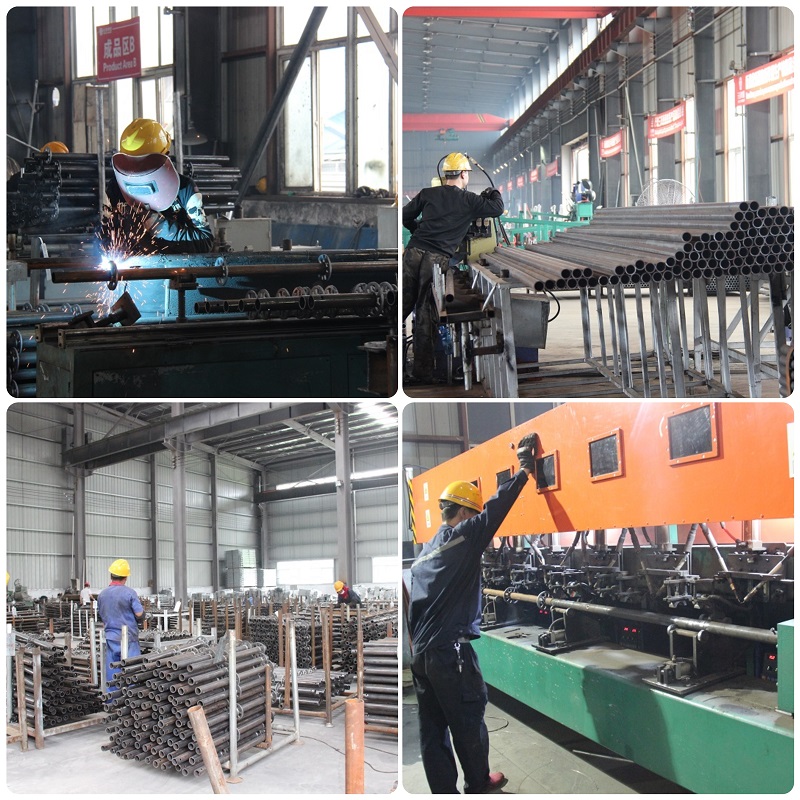

PRODUCTION

ADTO ringlock scaffoldings created by highly automated production. We can adapt production to suit our customers’ requirements, flexibly and at any time.

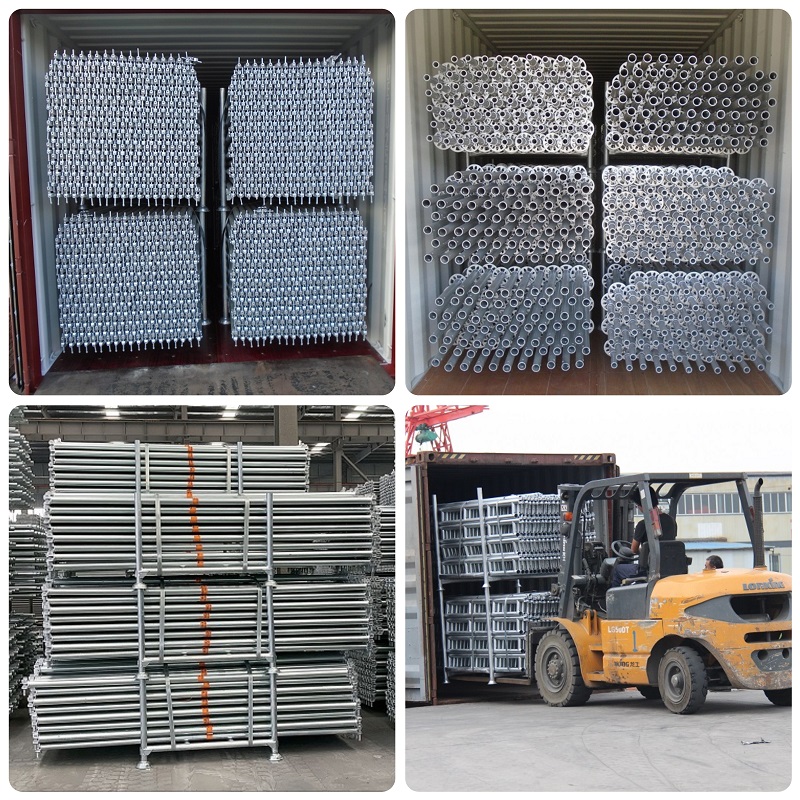

PACKING & LOADING

All scaffolding are packed in pallets for easy storage in warehouses, easy for loading and

unloading.

  PACKING AND LOADING.jpg

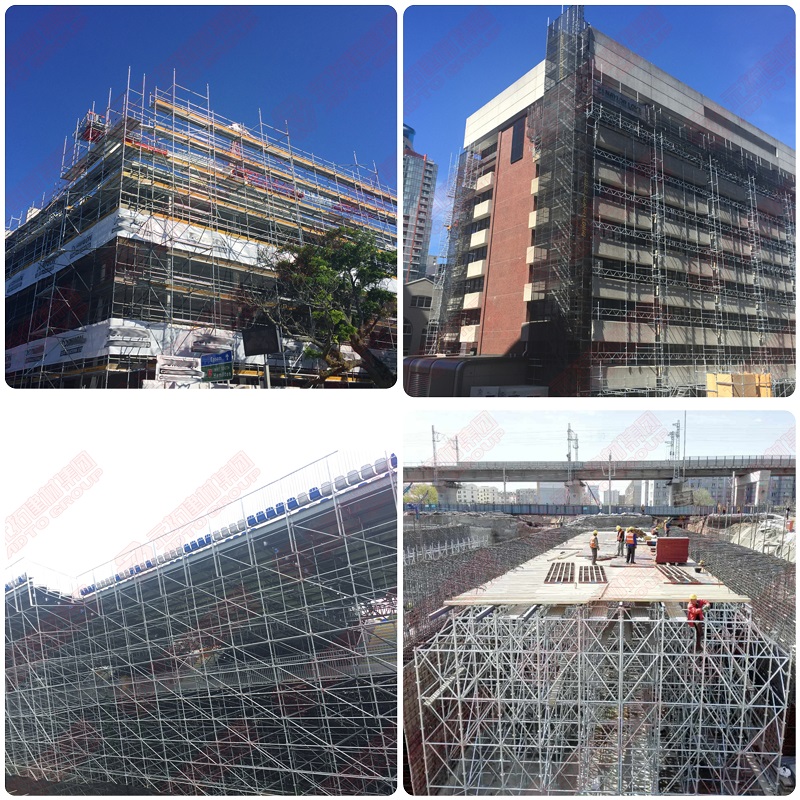

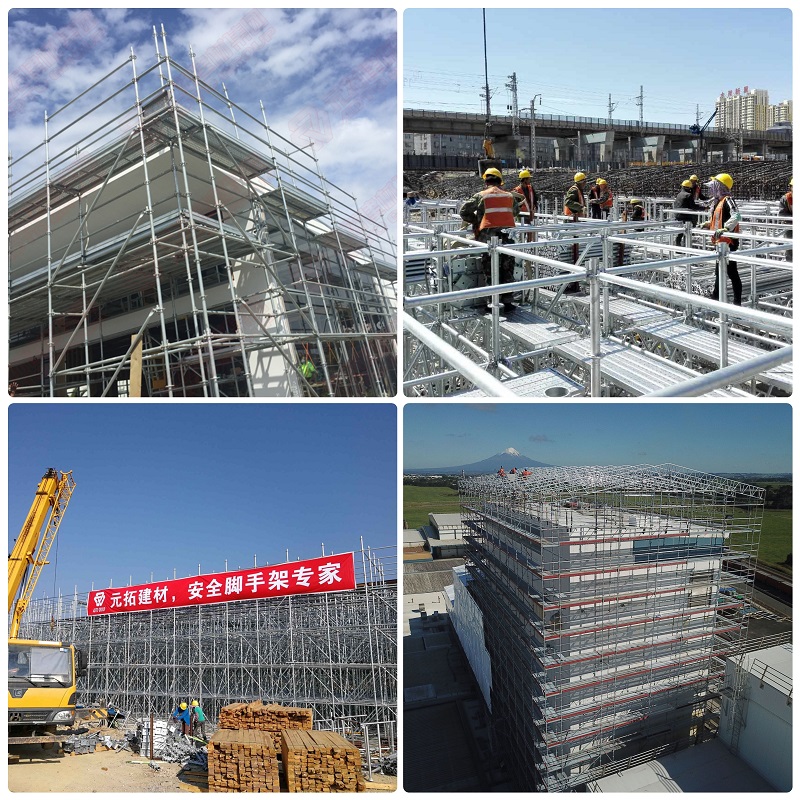

ON SITE PROJECTS

ADTO scaffolding was widely used on local and oversea market.

  ADTO RINGLOCK SCAFFOLDING PROJECTS1.jpg

ADTO RINGLOCK SCAFFOLDING PROJECTS2.jpg
